Diamond Tool Chip Breaker Laser Engraving Machine

Product Details:

Share Your Product:

60000-70000 USD ($)

Get a Price/Quote

Request To Call Back Send Inquiry

Diamond Tool Chip Breaker Laser Engraving Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 60000.00 - 70000.00 USD ($)
Price 60000-70000 USD ($)

Diamond Tool Chip Breaker Laser Engraving Machine Trade Information

FOB Port SHENZHEN
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cheque, Cash Advance (CA)
Supply Ability 500 Set Per Year
Delivery Time 30 Days
Sample Available Yes
Sample Policy Free samples are available
Packaging Details Wooden packing
Main Export Market(s) Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia
Main Domestic Market All India
Certifications CE

Product Description

The ZT-JGDK26 laser engraving machine is mainly used for PCD PCBN, Solid CBN , etc diamond tools chip breaker.

The components: Fiber laser, coaxial monitoring system, precision working table and CNC system

Design Features:

CCD monitoring system, more accurate positioned.
German original laser source, more stable performance
One button operation interface, more simple operation
Cutting efficiency: 10um per layer
Max thickness is :1mm
24hours working, no comsumables , laser maintenance free.

Specification

Laser Source	Fiber (German original laser)
Control Method	Software
Laser Power	30W
Wave Length	1064
Laser Mode	TM01
Beam Full Divergence	1.5-2.0rad
Focus Adjusting Range	0-30mm
Engraving Area	26x26mm
Table Travel	100x100x30mm
Positional Accuracy	0.03mm
Location Mode	CCD Coaxial
Motion Control	3 axis + optical 2 axis
Processing Speed	1-10 um per layer
Max Processing Depth	1mm
Cooling Method	Air Cooling
Consumable	No

Other Products in 'Laser Cutting Machine for PCD PCBN diamond ' category

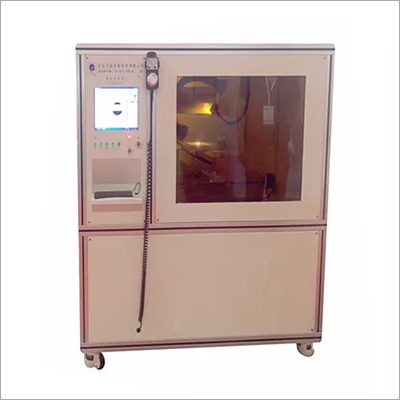

Laser Lapping Machine for PCD PCBN Blank Price : 60000-70000 USD ($) Minimum Order Quantity : 1 General Use : Lapping PCD/PCBN blank Capacity : 80 T/hr Material : Cast Iron Weight (kg) : 800 Kilograms (kg) Feature : High Performance, ECO Friendly, Low Noise, Lower Energy Consumption, High Efficiency Magnetic Chuck Size : Laser lappng Warranty : 12 MONTHS Working Speed : No Color : Other Table Slide Way : Double V Type Rail Grinding Wheel Speed : No grinding mm/m Voltage : 100 Watt (w) Computerized : Yes Product Type : Laser lapping machine Fuel Tank Capacity : 1 Liter (L) Grinding Length : no grinding wheel Power : 380 Volt (v) Grinding Wheel Size : No grinding wheel Control System : PLC Control Automatic : Yes Table Size : 200*200 CNC Or Not : CNC Dimension (L*W*H) : 1500*1100*1500 Millimeter (mm) Spindle Speed : 100 mm/m Floor Space : Stand Type : CNC Milling Machine, Gear Grinding Machine, Feed Grinding Machine

Send Inquiry

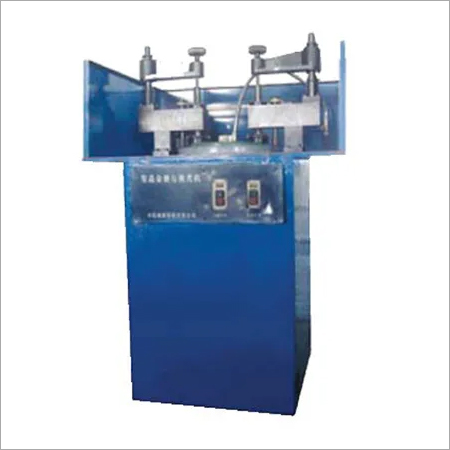

Polishing Machine for PCD PCBN CVD PDC cutter Price : 15000-20000 USD ($) Minimum Order Quantity : 1 General Use : Used for PCD PCBN CVD CERAMIC carbide surface polishing Capacity : 2pcs T/hr Material : Cast Iron Weight (kg) : 420 Kilograms (kg) Feature : Lower Energy Consumption, ECO Friendly, High Performance, Low Noise, High Efficiency Magnetic Chuck Size : 250*25*50.8 Warranty : 12 months Working Speed : 1400 Color : Blue Table Slide Way : V Type Rail Grinding Wheel Speed : 1400 RPM Voltage : 1100 Watt (w) Computerized : Yes Product Type : Polishing machine Fuel Tank Capacity : 12 Liter (L) Grinding Length : 100 Power : 380 Volt (v) Grinding Wheel Size : 250*25*50.8 Control System : Manual Automatic : No Table Size : 250*250 CNC Or Not : Normal Dimension (L*W*H) : 900*740*1200 Millimeter (mm) Spindle Speed : 10 RPM Floor Space : Stand Type : Surface Grinding Machine, CNC Milling Machine, Edge Milling Machine, Feed Grinding Machine

Send Inquiry

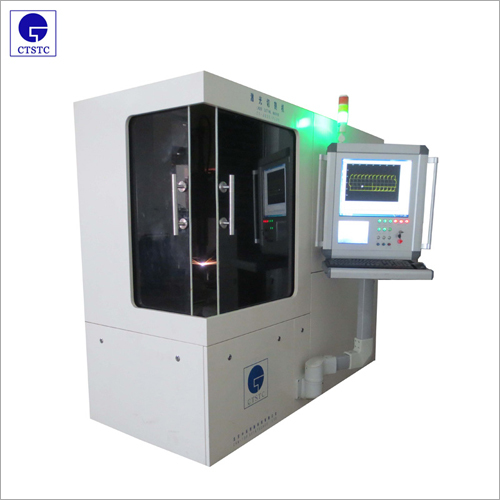

Laser Cutting Machine for PCD PCBN Tools Price : 60000-80000 USD ($) Minimum Order Quantity : 1 General Use : For PCD PCBN blank cutting Capacity : 100 T/hr Material : Cast Iron Weight (kg) : 800 Kilograms (kg) Feature : Lower Energy Consumption, High Performance, ECO Friendly, Low Noise, High Efficiency Magnetic Chuck Size : 250*250mm Warranty : 12 months Working Speed : 100mm/m Color : White Table Slide Way : V Type Rail Grinding Wheel Speed : 100 mm/m Voltage : 1300 Watt (w) Computerized : Yes Product Type : Laser cutting machine Fuel Tank Capacity : 250*250 Cubic Yard (yd3) Grinding Length : No grinding Power : 380 Volt (v) Grinding Wheel Size : No grinding wheel Control System : PLC Control Automatic : Yes Table Size : 250*250mm CNC Or Not : CNC Dimension (L*W*H) : 2400*900*1700 Millimeter (mm) Spindle Speed : 100 mm/m Floor Space : 0.03

Send Inquiry

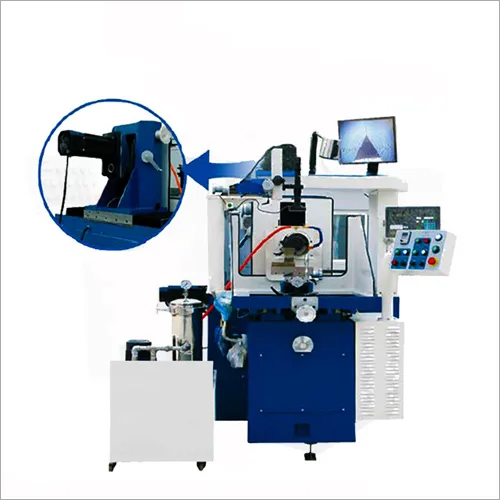

Tool Grinder for PCD PCBN Diamond Tools Price : 45000-50000 USD ($) Minimum Order Quantity : 1 General Use : PCD PCBN Diamond tools grinding Capacity : 1.5 Ton/day Material : Cast Iron Weight (kg) : 1420 Kilograms (kg) Feature : ECO Friendly, Low Noise, Lower Energy Consumption, High Performance Magnetic Chuck Size : 1200*1168*1530mm Warranty : 12 Working Speed : 042000 Color : Blue Table Slide Way : V Type Rail Grinding Wheel Speed : 04200 RPM Voltage : 380 Volt (v) Computerized : Yes Product Type : Diamond Tools Fuel Tank Capacity : 13 Liter (L) Grinding Length : 170mm Power : 380 Volt (v) Grinding Wheel Size : 150*40*40mm Control System : Manual Automatic : Yes Table Size : 210*160mm CNC Or Not : Normal Dimension (L*W*H) : 1200*1168*1530 Millimeter (mm) Type : Edge Milling Machine
